Mini Heater
Wall or under-seat heater
- SKU: 8102111***
Olmo brand heaters (Mini, Midi and Ultimate) are coolant auxiliary heaters used to support the overal vehicle heating system in areas where additional heat load is required.
Mini heater is usually placed under-seat or hidden within the vehicle structure. It offers a convenient heating capacity while keeping a reduced space and silent operation.
Its design -plastic PA6 housing- offers a considerable weight reduction and positions Mini heater as a versatile solution for any kind of vehicle, from small vans to big buses and coaches. Mini heater allows port connections from the center or side.
advantages & benefits
Compatible vehicles
Contact Us
- Technical specs

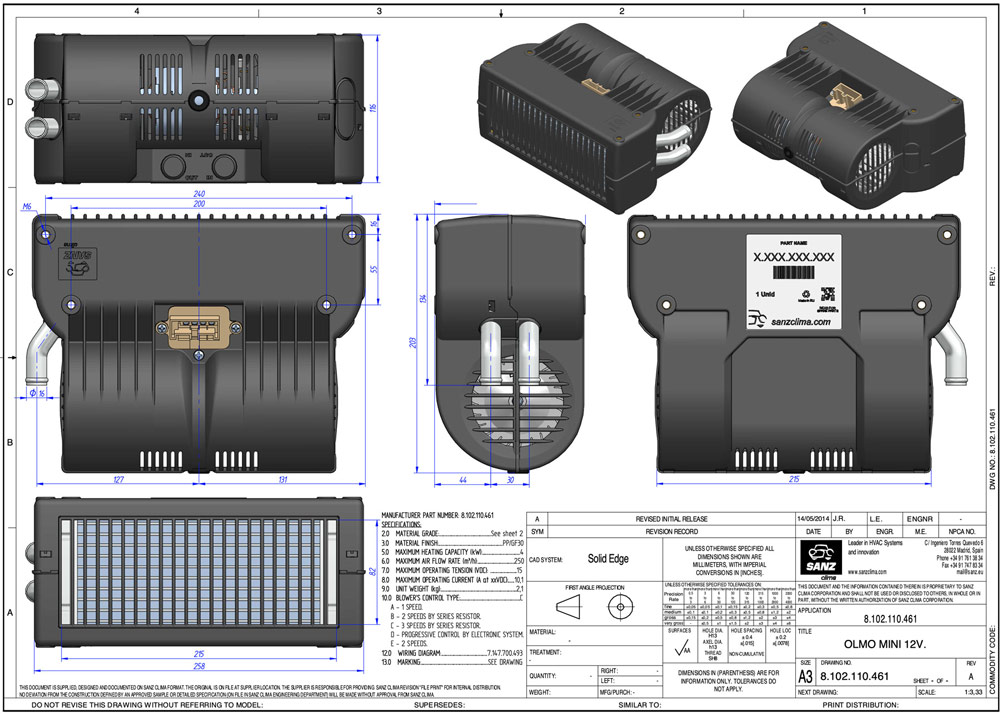

- Drawings
- Real applications
- Attachments
Additional information
Dimensions | 258 x 118 x 203 mm (10.15'' x 4.65'' x 8'') |
---|---|
Housing design | PA6 / GF30 |
Operating voltage | 12 / 24V |
Operating current | 4 Amps |
Heating capacity | 4 kW (14,000 Btu/h) |
Air flow | 210 m3/h (124 cfm) |
Blower type | Brush, 3 speeds |
Port diameter | 16mm (5/8 inch) |
Port exit | Central or lateral |
Heater core | Microchannel |
