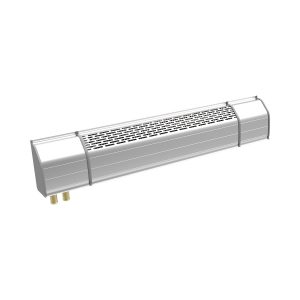

GR7F Convector

Wall-mounted forced convection heater

GR7F is the forced version of natural convector GR7. Following the same profile shape as GR7, GR7F includes a series of axial fans to boost the heating capacity inside the vehicle, especially on areas where additional heat load is required.

Installed in combination with GR7 or as a standalone unit, GR7F convector guarantees an optimal thermal comfort while keeping a nice aesthetic within the bus.

GR7F is suitable for transit buses or coaches, as well as smaller vehicles where it can be used as a floor heater due to its silent operation and guaranteed long life.

Sanz Clima convector’s kits are customized according to customer needs, adjusting to the required length, and offering different piping material and outlet configurations. All necessary installation items are included, reducing assembly time in the line.

advantages & benefits

Aesthetic
Aesthetic
Innovative
Innovative
Easy installation
Easy installation

Compatible vehicles

Coaches
Buses
Vans
Caravans

Contact Us

Additional information

Width and height

73 x 160 mm (2.9'' x 6.3'')

Length

500mm (1.64 ft) per forced module

Heating capacity

Up to 4500 W/module (15,000 Btu/h per fans module)

Weight

1.5 kg per module (1 lb per module)

Number of coolant pipes

2 pipes

Material of coolant pipes

Aluminum or copper

Number of fans

3, 4 or 5

Air flow

up to 450 m3/h (270 cfm)

Current draw

up to 2.5 A (5 fans version)

Noise

up to 61 dB

IP degree

IP54 (available IP67 upon request)

Heater core

Tube&fin heat exchanger

Connector

Upon customer request
